Enxiy 12v 24v 10a Solar Pwm Controller 10amp Lcd Display Solar Charger Controller

Enxiy 12v 24v 10a Solar Pwm Controller 10amp Lcd Display Solar Charger Controller

Buy 10a Charge Controller,12v 24v Mppt Solar Battery Controller,20a 30a 40a Solar Controller Product
  • Item No. ECM20
    MOQ 2 piece
  • Product size 30 x 20 x 10 cm
    Product weight 5 kg
Tag   sourcing

Available Options

Rated Voltage
Maximum Current
Samples: $60.00 /piece .  |  1 piece. Max.available  |  Order Sample

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

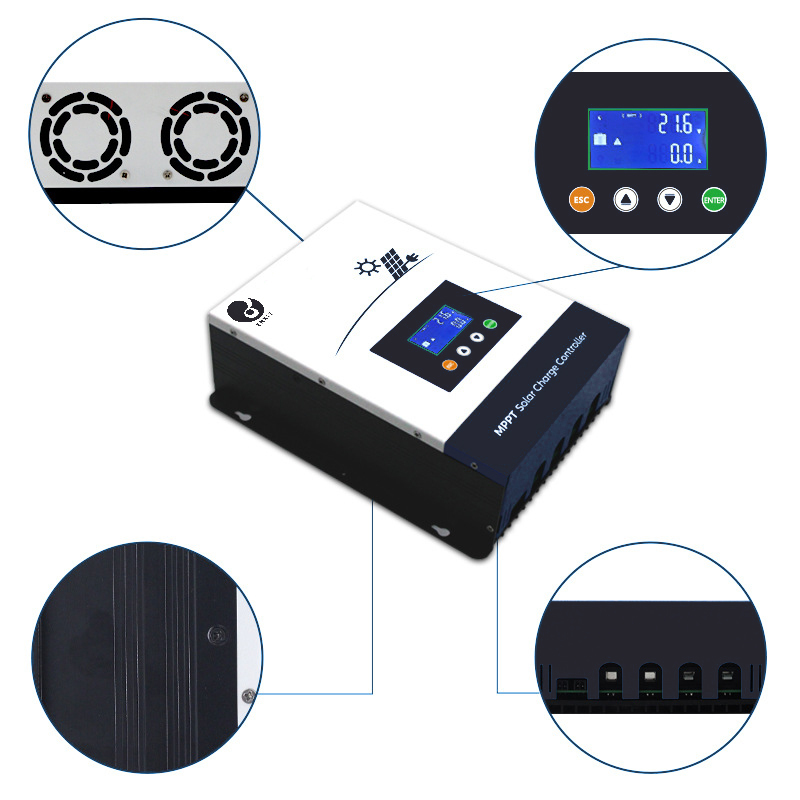

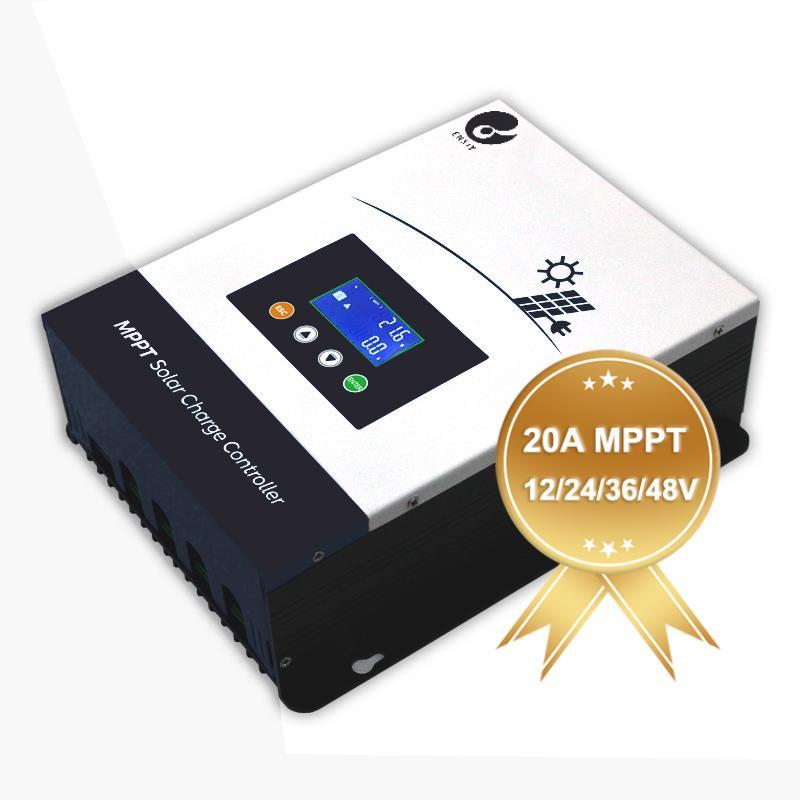

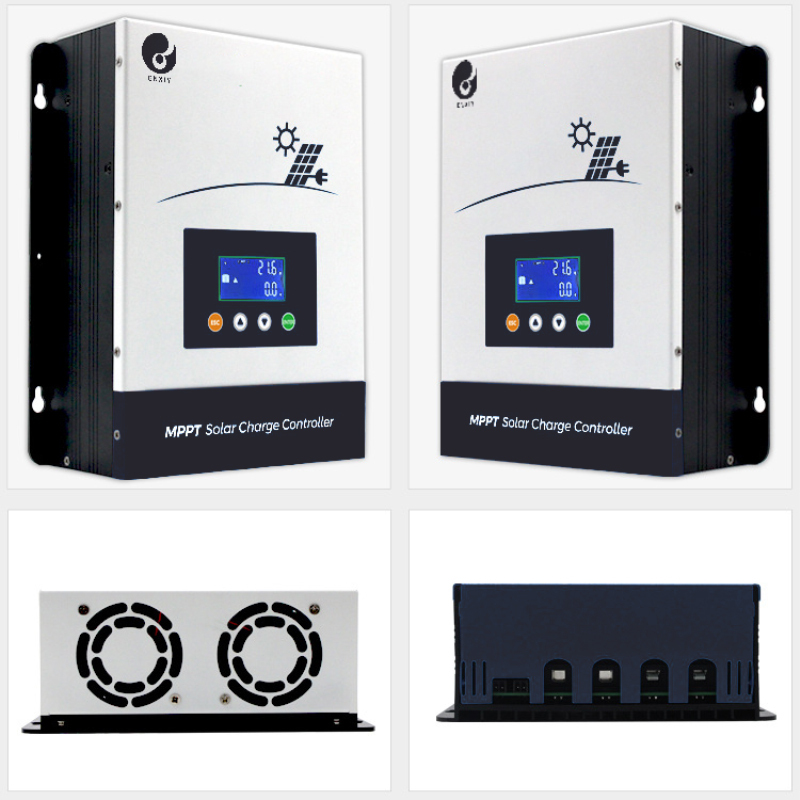

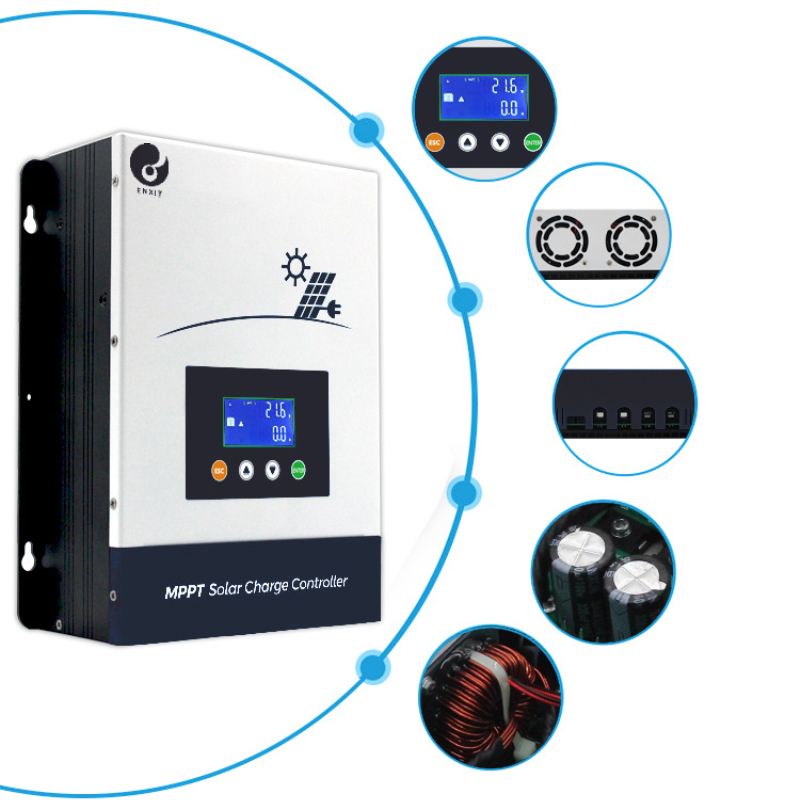

I Charger MPPT 8048
I Charger MPPT 10048
Charging mode
3-stage:Constant Current(MPPT),Constant Voltage,Floating
System Voltage
12/24/36/48/Auto
Max PV Input Power
1200W/12V;2400W/24V
3600W/36V;4800W/48V
1500W/12V; 3000W/24V
4500W/36V; 6000W/48V
Max PV Input Voltage
150 Voc
Battery voltage automatic recognition: 48V Battery
12V System(DC8.7V-DC15.5V)
24V System(DC16V -DC31V)
36V System(DC33V -DC41V)
48V System(DC42V -DC64V)
Overcharging protection voltage: 48V Battery
12V System(16V)
24V System(32V)
36VSystem(48V)
48V System(64V)
Limited current protection
80A/100A
Max effiffifficiency
≥98.1%
PV utilization
≥99%
Temperature protection
80℃
Fan-on temperature
>45℃
Fan-offff temperature
<40℃
Size (mm)
252*201*80.3
Net weight(Kg)
2.28
2.49
Electromagnetic compatibility
Accord to EN61000, EN55022, EN55024
Enclosure
IP21
Environmental temperature
-20℃~+55℃
Storage temperature
-40℃~+75℃
